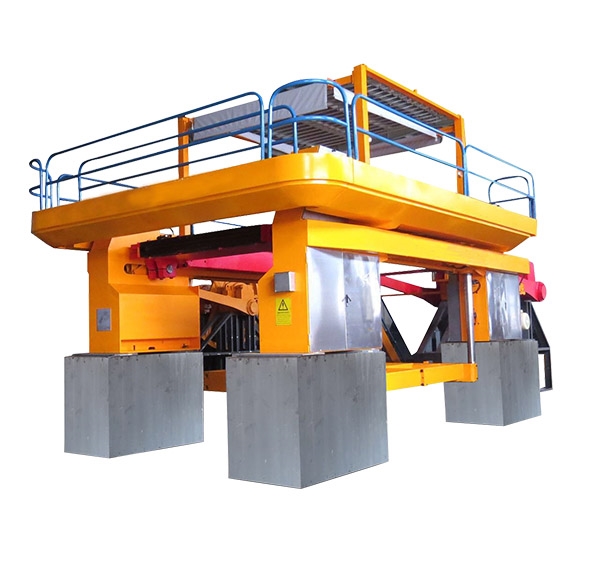

Stone Gang saw石材荒料框架鋸

領跑智能制造新“石”代

Stone Gang saw石材荒料框架鋸

所屬品牌：

所屬類別：產品庫

想了解更多相關產品信息，請聯系我們！

0594-2197723

hualongmc@163.com

我要咨詢

產品說明
技術參數

主要特點
1. 采用升降式輸送臺的鋸切方式，并采用變頻驅動。

2. 鋸架的往復擺動采用了靜壓圓形導軌結構。

3. 采用了雙曲柄和雙連桿結構。

4. 專用的螺旋桿抗沖擊機械防護裝置。

5. 電流波動小，電機使用壽命長。

6. 運行阻力小，節能且省電。

7. 這個鋸架可以安裝 100 個金剛石鋸片。

8. 該鋸架具有較高的直線度、良好的切割質量和較高的產量。

9. 它更適合用于超薄鋸片以及切割薄板。

10. 采用了帶有人機界面的智能控制系統，便于操作，能夠監測設備的各種工作狀態，并顯示故障原因警報提示。

Main Features

1. Adopt table lifting feeding mode for sawing, frequency conversion drive.
2. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame. 3. Adopts double crank and
double connecting rod structure.
4. Exclusive use of screw rod anti impact mechanical protection device.
5. Small current fluctuation, longer motor life.
6. Small running resistance, energy saving and power saving.
7. The saw frame can be assembled with 100 diamond saw blades.
8. The saw frame has high straightness, good cutting quality and high yield.
9. It is more suitable for ultra-thin saw blade and cutting thin plate.
10. Intelligent control system with man-machine interface is adopted for easy operation, which can monitor various working states
of the equipment, and display fault cause alarm prompt

TECHNICAL DATA
Model No.		HLKJ-100/S800	HLKJ-100/S800
Number of blade	pc	80	100
Blade length	mm	4400	4400
Working stroke of blade	mm	800	800
Max.cutting size of block	mm	3200x2500x200	3200x2500x200
Min.cutting thickness of slab	mm	16	16
Cutting feed	mm/h	50-400	59-400
Power of main motor	kw	110	132
Block trolley size	mm	2050x3200	2559x3200
Gross weight	kw	52000	62000
Dimensions (L x W x H)	mm	11900x5060x4960	11900x5560x4960

名稱	單位	HLKJ-100/S800
鋸條數	pc	100
鋸條規格	mm	4400
鋸條行程	mm	800
主機功率	kw	110
總功率	kw	121
可加工最大荒料尺寸	mm	320020002000
能切最薄板材厚度	mm	16
荒料車規格	mm	3200*2020
鋸機外形尺寸	mm	1190055604960
鋸機重量	t	62
